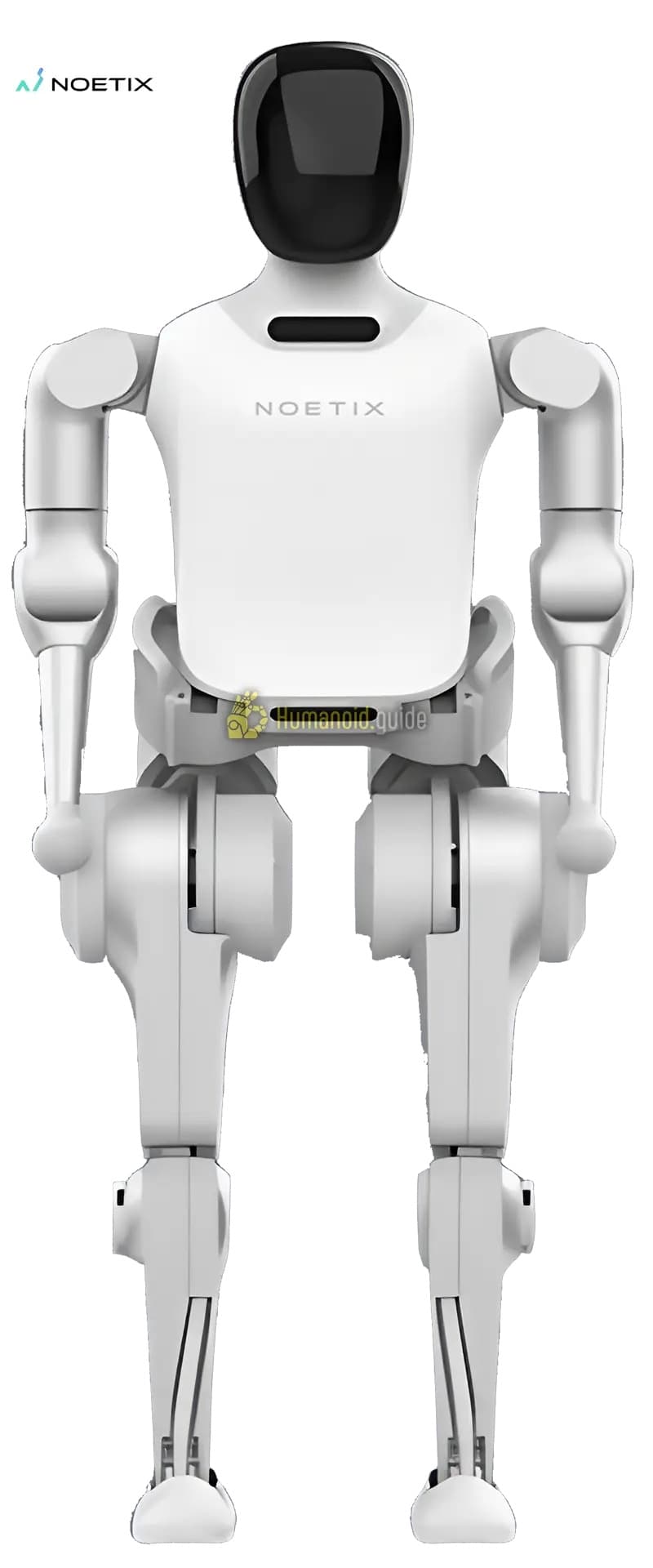

Noetix Athlete N2

Overview

N2 compresses high-agility bipedal robotics into a safe, household-scale platform. Five-joint legs and four-joint arms deliver stable running up to 12.6 km/h and dynamic tricks without the inertia of larger frames. Depth cameras provide millimetre-grade 3-D awareness for stairs, clutter, and tight corridors. Onboard Linux with Python/C++ hooks makes it easy to integrate ROS/LLM stacks or custom skills, while a hot-swappable 48 V pack keeps lessons and demos moving. With optional five-finger hands for light pick-and-place, N2 gives teams a practical, hackable path into real-world humanoid applications.

Key Features

• Height / Weight: 118 cm, 30 kg
• Overall DOF: 18
• Top Speed: 12.6 km/h
• Walking Payload / Strength: 5 kg
• Runtime per charge: ~2 hours (48 V battery; quick-swap)
• Hands / Fingers: default ball-hand (0 fingers); optional 5-finger end-effectors
• Safety / IP: not specified
• CPU/GPU: Rockchip RK3588s (8-core, ~6 TOPS); Jetson variants shown in demos
• OS: Linux
• Perception: structured-light depth cam (640×400 @ 12 fps; <3 mm depth error @ 0.5 m); forward + down-slanted depth views
• Connectivity: Ethernet, USB, HDMI
• LLM/AI: speech & visual interaction hooks; generative-AI chat shown on Jetson builds
• Actuators: 48 V DC geared motors with encoders; up to ~150 N·m peak joint torque (demo claim)
• Joint layout: 5 powered joints per leg; 4 per arm (natural gait, jumps, expressive gestures)
• Battery: 48 V / 7 Ah, slide-out swap in <5 s; ~2 h or ~2.5 km continuous walk; quick-charge in similar time
