qb SoftHand2 Research
Underactuated anthropomorphic research hand: 19 DoF, two synergies, two motors, 0.94 kg
Price
Price not publicly disclosed
No defensible public pricing observation is documented yet.
Key facts
Values reflect the public record
- Height
- No public data documented
- Weight
- 0.94 kgManufacturer confirmed
- Payload
- No public data documented
- Degrees of freedom
- No public data documented
- Runtime
- No public data documented
- Max speed
- No public data documented
Canonical robot record
Overview

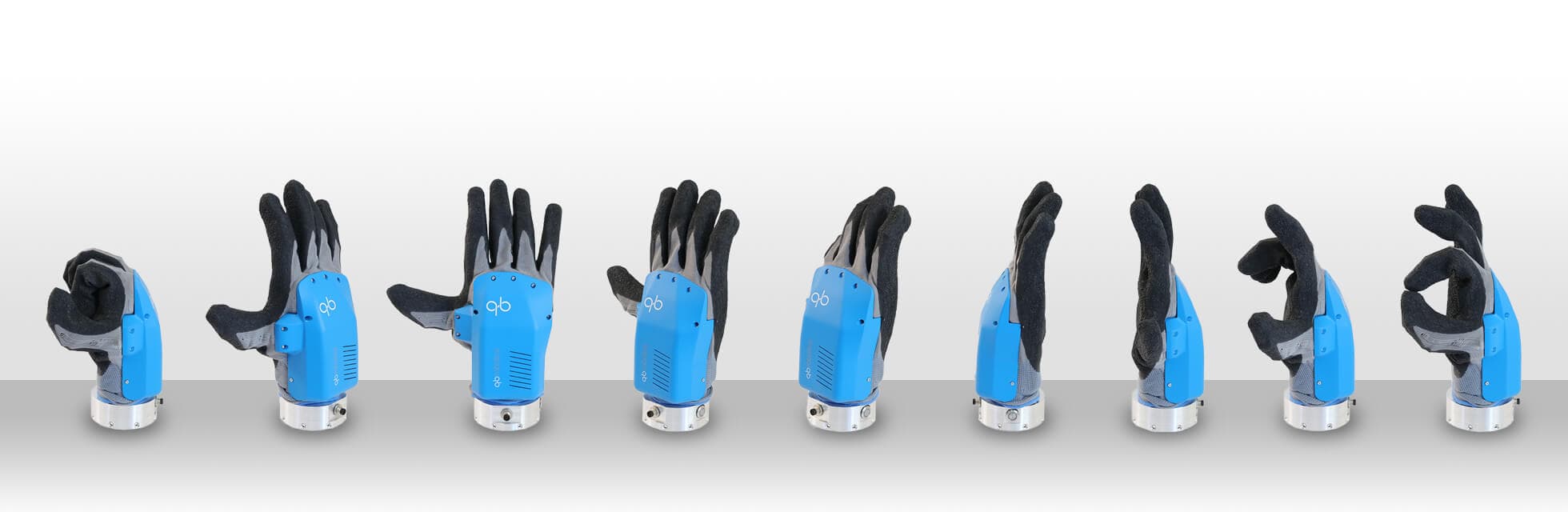

The qb SoftHand2 Research is the evolution of the qb SoftHand Research: an anthropomorphic robotic hand with 19 disclosable, self-healing finger joints actuated by two motors through two synergies. The second synergy allows it to manipulate objects intended for the human hand without changing wrist orientation, supporting precision pinch grasps, power grasps, in-hand manipulation and a pointing-finger posture; it closes from wide open to a clenched fist in one second.
The hand weighs 0.94 kg, with a nominal payload of 2 kg in pinch configuration and 3 kg in grasp configuration. Feedback is limited to motor position and motor current, and it connects over USB and RS-485 with ROS and ROS2 compatibility. qbrobotics publishes a datasheet, user guide, CAD files, C++ API and GUI software for it, and sells through direct contact and distributors.
RoboZaps maintains this record as part of its canonical robotics database. Specs are source-verified where linked; the record compares public facts across manufacturers rather than representing a single robot maker.
- Spec sources
- 1 linked
- Verification
- Verified · 8/8 specs source-verified
- Deployment
- Paid Deployment
- Last verified
- Jul 31, 2026
Specifications
Grouped technical data with source detail available on demand.
8 documented values
Commercial
| Buying format | Standalone — quoteManufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
|---|
Mechanics
| Fingers | Not stated by manufacturer (anthropomorphic hand with 19 finger joints)Manufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
|---|---|
| Actuated degrees of freedom | 2 motorsManufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
| Total degrees of freedom | 19Manufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
| Actuation | Underactuated soft hand with two synergies (two motors)Manufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
Performance
| Grip / payload | Nominal payload 2 kg (pinch configuration); 3 kg (grasp configuration)Manufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
|---|
Physical
| Weight | 0.94 kgManufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
|---|
Sensing
| Tactile / force sensing | None; feedback is motor position and motor currentManufacturer confirmedVerified Jul 31, 2026 qbrobotics srl |
|---|
Evidence & changelog
Sources behind this record and material corrections made over time.
Sources
- qb SoftHand2 Research · qbrobotics srl — cites Fingers, Actuated degrees of freedom, Total degrees of freedom, Actuation, Tactile / force sensing, Weight, Grip / payload, Buying format
