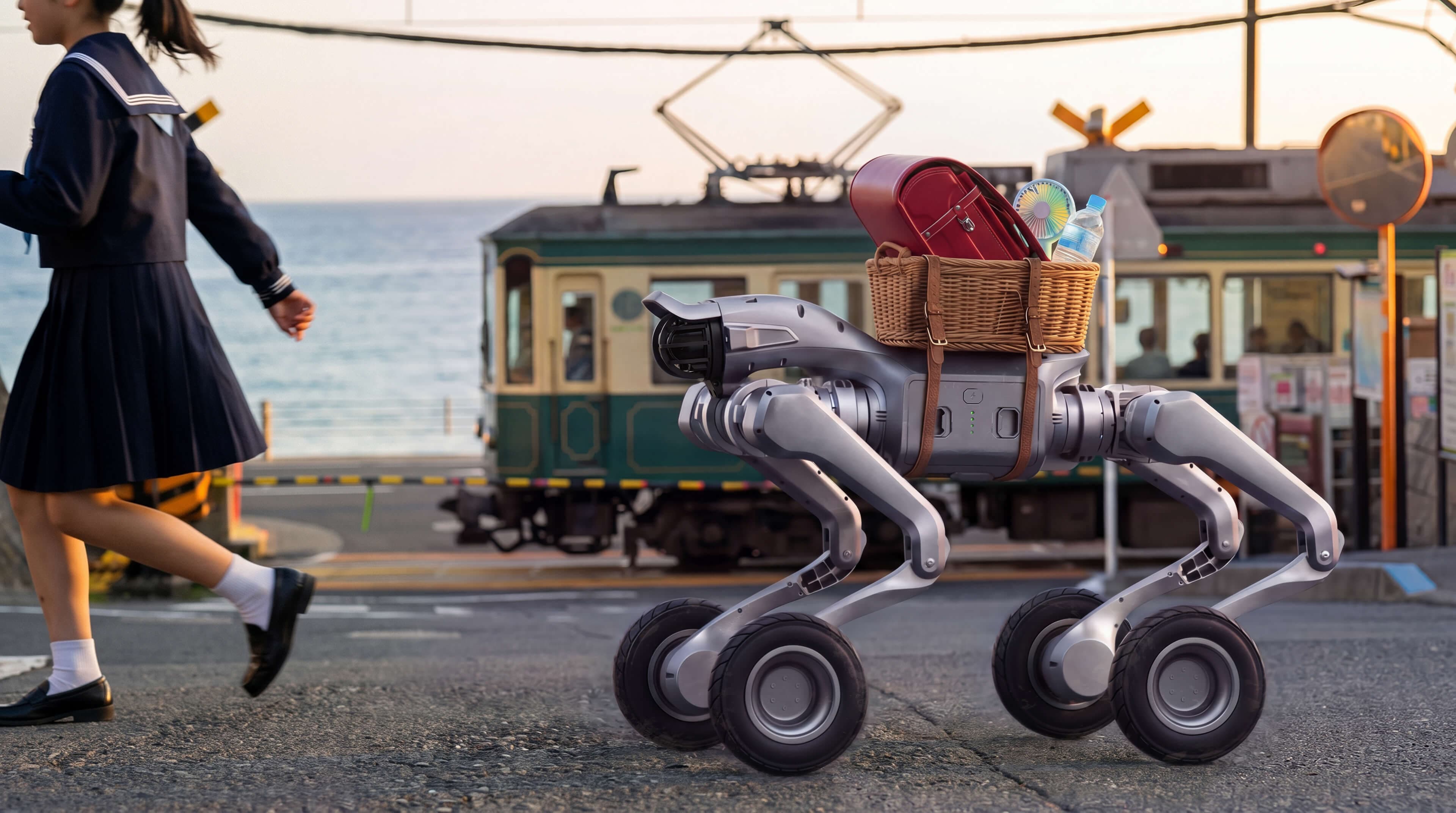

Unitree As2-W
Compact wheel-legged quadruped with contact-sales X and EDU variants
Price
Price not publicly disclosed
No defensible public pricing observation is documented yet.
Key facts
Values reflect the public record
- Height
- No public data documented
- Weight
- Approx. 25 kg with batteryManufacturer confirmed
- Payload
- Approx. 16 kg continuous walking; approx. 150 kg maximum standing loadManufacturer confirmed
- Degrees of freedom
- 16 joint motorsManufacturer confirmed
- Runtime
- Approx. 3 hours unloaded and more than 2 hours with a 16 kg load. Distance claims conflict on the same page: feature marketing says more than 30 km unloaded; the runtime summary says more than 33 km unloaded and more than 16 km loaded; the parameter table says approximately 30 km unloaded and approximately 25 km loaded.Manufacturer confirmed
- Max speed
- Approx. 6 m/s maximum; listed operating range 0–3.7 m/sManufacturer confirmed
Canonical robot record
Overview
Unitree As2-W is a compact wheel-legged quadruped that combines powered wheels with articulated legs for fast travel and obstacle traversal. It is distinct from Unitree's leg-only As2 and the older, industrial A2-W. Unitree lists As2-W X and As2-W EDU variants through a contact-sales path, but has not published a list price or public delivery evidence, so RoboZaps classifies the model as announced.
RoboZaps maintains this record as part of its canonical robotics database. Specs are source-verified where linked; the record compares public facts across manufacturers rather than representing a single robot maker.
- Spec sources
- 1 linked
- Verification
- Verified · 16/16 specs source-verified
- Deployment
- Announced
- Last verified
- Aug 4, 2026
Specifications
Grouped technical data with source detail available on demand.
16 documented values
Commercial
| Availability Status | announcedManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|---|
| Commercial model | Contact Sales for As2-W X and As2-W EDU; no public list priceManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
Compute
| Compute | 8-core CPU; optional high-compute expansion for the EDU configuration, including Orin NX-class optionsManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|
Connectivity
| Communication | Wi-Fi 6, Bluetooth 5.2, Gigabit Ethernet and SBUS; GPS and 4G are disabled by default and require user authorizationManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|
Environment
| IP Rating | IP54Manufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|---|
| Operating Temperature | -20 °C to 55 °CManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
Mechanics
| Degrees of Freedom | 16 joint motorsManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|---|
| Locomotion | Wheel-legged quadrupedManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
Performance
| Max Speed | Approx. 6 m/s maximum; listed operating range 0–3.7 m/sManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|---|
| Payload Capacity | Approx. 16 kg continuous walking; approx. 150 kg maximum standing loadManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
| Max joint torque | Approx. 95 N·m maximum joint torqueManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
Physical
| Weight | Approx. 25 kg with batteryManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|
Power
| Runtime | Approx. 3 hours unloaded and more than 2 hours with a 16 kg load. Distance claims conflict on the same page: feature marketing says more than 30 km unloaded; the runtime summary says more than 33 km unloaded and more than 16 km loaded; the parameter table says approximately 30 km unloaded and approximately 25 km loaded.Manufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|---|
| Power supply | 648 Wh (15,000 mAh) lithium battery; 36–50.4 V supplyManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
Sensing
| Sensors | HD camera and industrial 64–128-line ultra-wide-angle LiDARManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|
Software
| SDK Support | YesManufacturer confirmedVerified Aug 4, 2026 Unitree Robotics (opens in a new tab) |
|---|
Evidence & changelog
Sources behind this record and material corrections made over time.
Sources
- Unitree As2-W Product Page (opens in a new tab) · Unitree Robotics — cites Availability Status, Commercial model, Weight, Degrees of Freedom, Max Speed, Payload Capacity, Runtime, IP Rating, Max joint torque, Power supply, Sensors, Compute, SDK Support, Communication, Operating Temperature, Locomotion
Manufacturer
Chinese robotics company developing affordable quadruped and humanoid robots for consumer, industrial, and research markets.
- Headquarters
- Hangzhou, China
- Founded
- 2016
