Figure 03
General-purpose humanoid robot built for the home
Contact for pricing

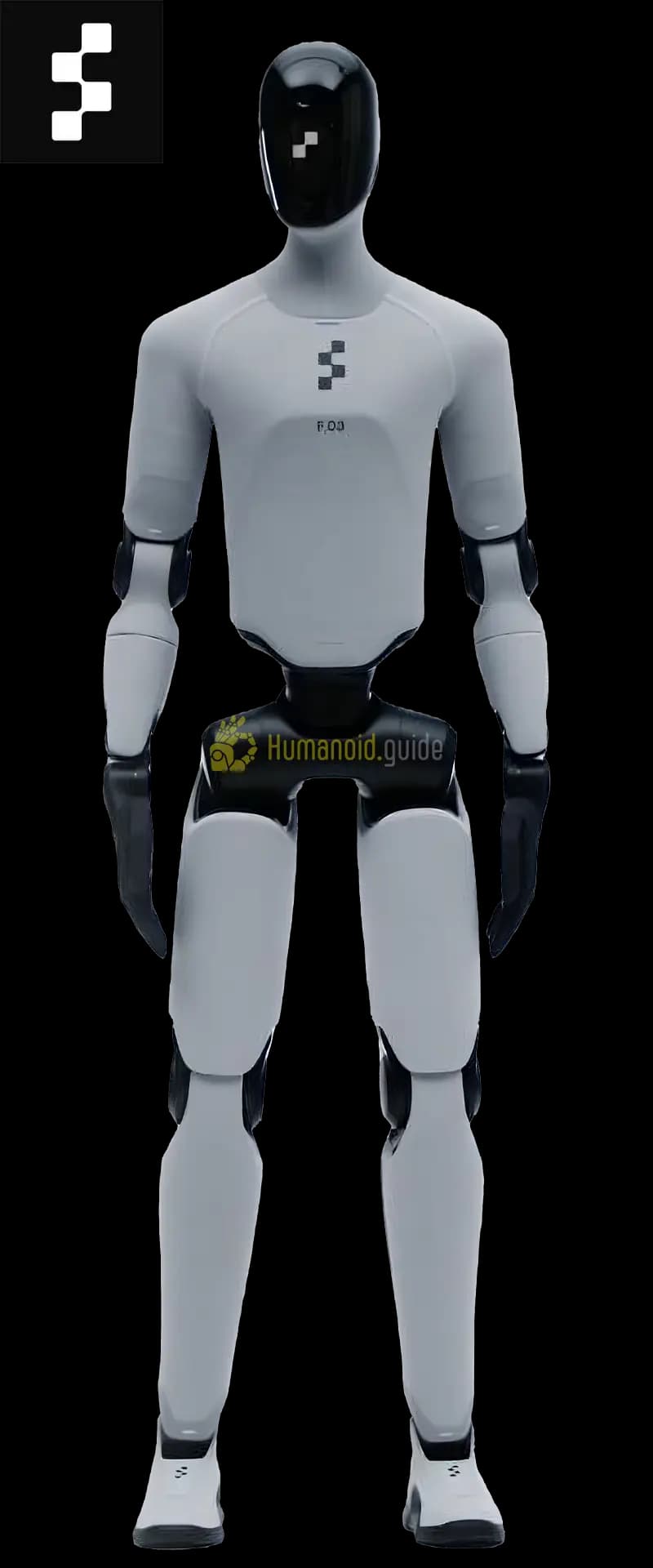

Figure 03 is the third-generation general-purpose humanoid robot from Figure AI, redesigned for everyday home environments with a softer look, soft textiles, and protective foam. It is powered by the company's Helix AI system for pixel-to-action learning and carries a redesigned sensory suite and dexterous hand system. It supports wireless inductive charging and wireless data offload, and is built for high-volume manufacturing on Figure's BotQ line.
Released: 2025
- Price
- Contact for pricing
- Height
- 5'8" (1727 mm) Manufacturer
- Weight
- 61 kg Manufacturer
- Payload
- 20 kg Manufacturer
- Degrees of freedom
- Not disclosed
- Battery
- 5 hr Manufacturer
Canonical robot record
Verified facts for Figure 03
RoboZaps maintains this record as part of its canonical humanoid robot database. Specs are source-verified where linked; RoboZaps compares options across manufacturers and does not represent a single robot maker.
- Spec sources
- 3 linked
- Verification
- Verified Jul 6, 2026 · every displayed spec is source-checked
- Availability
- Piloting
- Last verified
- Jul 6, 2026
Best fit
Teams that need to compare Figure 03 against otherhumanoids options with deployment readiness, commercial terms, and support assumptions made explicit.
Not best fit
Buyers who need a guaranteed off-the-shelf deployment before confirming current availability, integrator coverage, site readiness, and post-sale support ownership.
Reviews & analysis from the RoboZaps blog
Editorial analysis lives on the blog; this database record stays focused on verified facts.
Overview

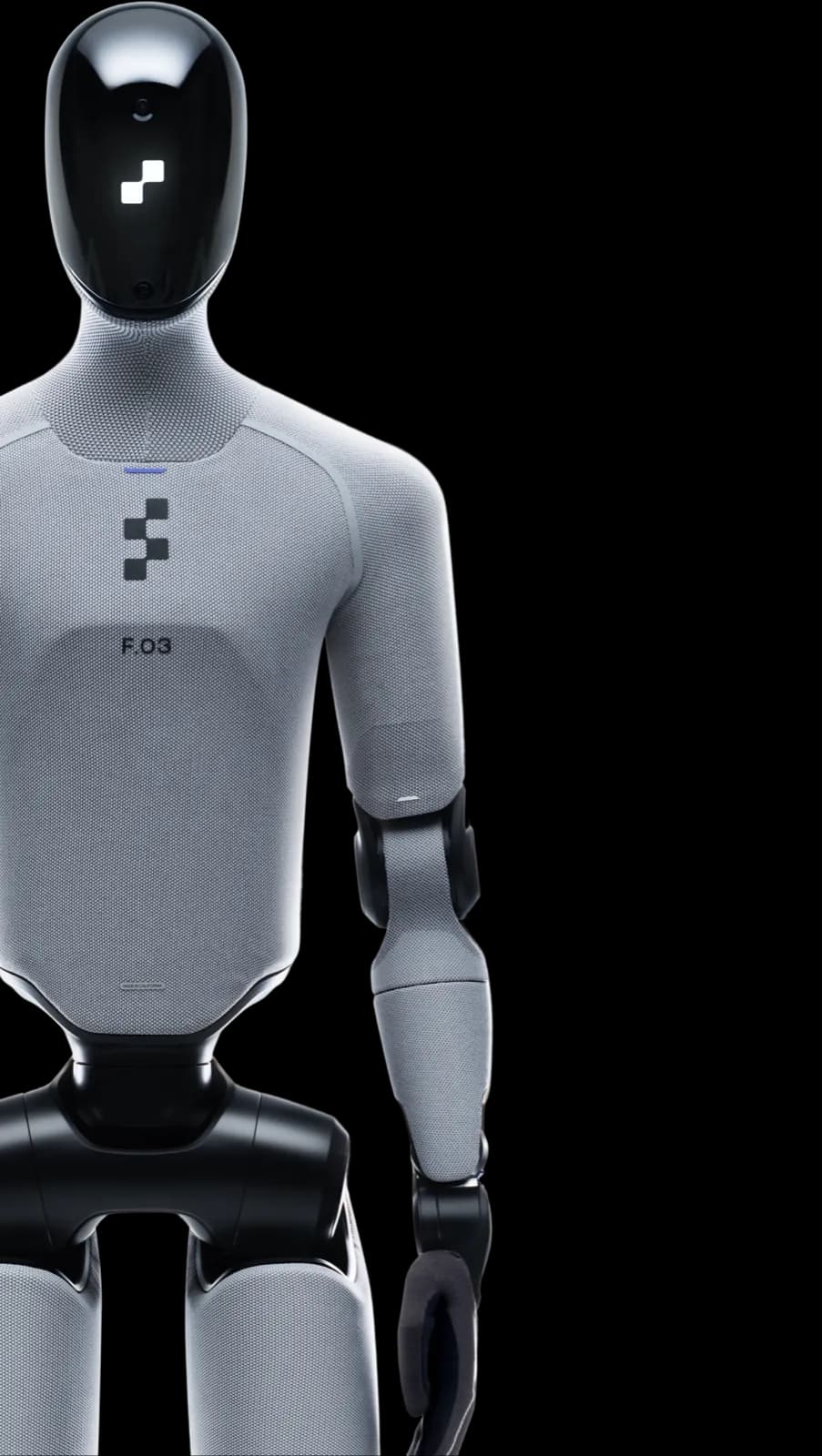

Figure 03 is the third-generation general-purpose humanoid robot from Figure AI, reimagined for the home after earlier versions were tested in the workforce. The company describes it as human-shaped and AI-powered, designed to navigate unpredictable, ever-changing home environments and perform everyday household tasks the way a person would.
The robot is driven by Figure's Helix AI system, which enables pixel-to-action learning so it can adapt to varied and changing home layouts. Figure 03 introduces a fully redesigned sensory suite and hand system purpose-built to bring Helix to life, including embedded palm cameras that provide redundant, close-range visual feedback during grasps.
Figure 03 is engineered for safe operation around people and for high-volume manufacturing. It is covered in soft textiles rather than hard machined parts, uses strategically placed multi-density foam to protect against pinch points, supports wireless inductive charging and wireless data offload, and is intended to be produced at scale on Figure's BotQ manufacturing line.
Key Features
- Powered by the Helix AI system for pixel-to-action learning in dynamic home environments
- Redesigned sensory suite with higher frame rate, lower latency, and wider field of view per camera
- Dexterous hands with embedded palm cameras for close-range visual feedback during grasps

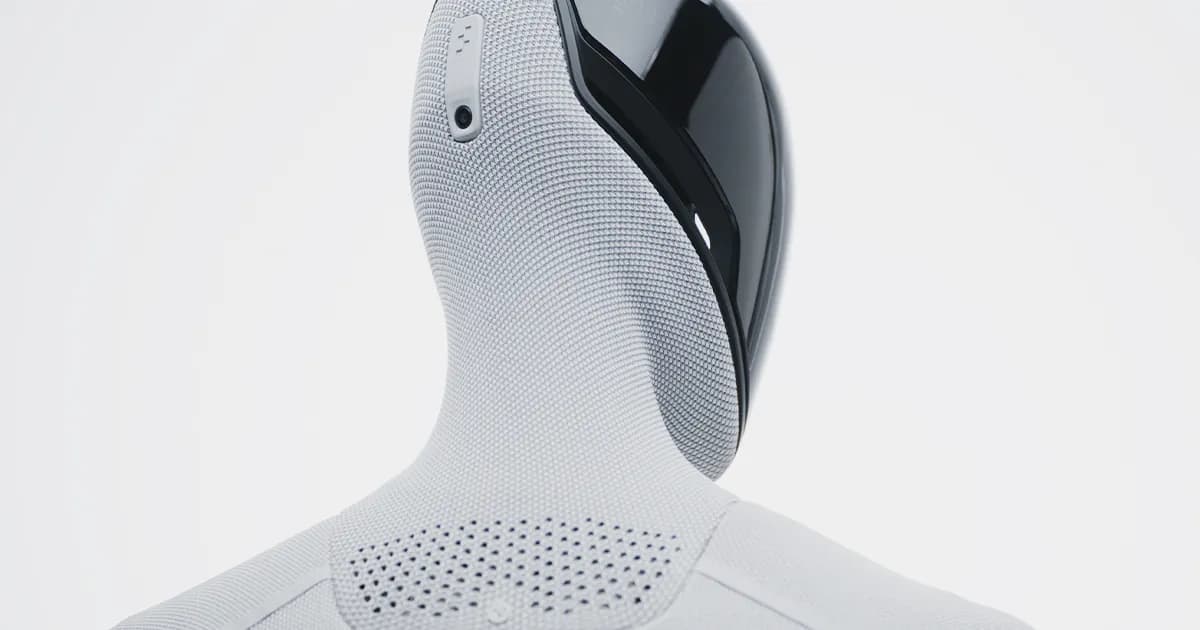

- Soft textile covering and multi-density protective foam for safer operation around people
- Wireless inductive charging and wireless data offload
- Reduced mass and volume versus Figure 02 for easier maneuvering through household spaces
- Designed for high-volume production on Figure's BotQ manufacturing line
Specifications
Mechanics
| Locomotion | Bipedal |
| Actuators | Custom electromechanical actuators — ~2× faster with improved torque density vs Figure 02 (absolute torque/DoF not disclosed) |
Performance
| Max Speed | 1.2 m/s |
| Payload Capacity | 20 kg |
Physical
| Weight | 61 kg |
| Height | 5'8" (1727 mm) |
Power
| Battery Life | 5 hr |
Compare with similar robots
| Figure 03 | Unitree H2 | TORA-ONE | THEMIS V2 | |
|---|---|---|---|---|
| Price | On request | On request | On request | On request |
| Height | 5'8" (1727 mm) | 180 cm | 146-186 cm (foldable/adjustable) | 1.6 m |
| Weight | 61 kg | 70 kg | — | 37.5 kg |
| Payload | 20 kg | 15 kg peak / 7 kg rated (single arm) | 5 kg per arm (rated) | 15 kg |
| Reach | — | — | — | — |
| Max speed | 1.2 m/s | — | 0.6 m/s | 2.78 m/s |
| Degrees of freedom | — | 31 | 47 | 40 |
| Battery | 5 hr | ≈3 h runtime (972 Wh, 15 Ah, max 75.6 V) | 8 hours | 3 hours |
Evidence & changelog
Sources
- Figure AI - tranche-1 verification · Figure AI — cites Locomotion
- Figure AI - tranche-1 verification · Figure AI — cites Height, Weight, Payload Capacity, Battery Life, Max Speed
- Introducing Figure 03 · Figure AI — cites Actuators
Record changelog
- Height: 5'8" → 5'8" (1727 mm) · Jul 6, 2026
tranche-1 verification (corrected): Value matches; stored numeric 68 (inches) wrong for mm unit
Videos
Manufacturer
Developer of general-purpose humanoid robots for commercial and industrial applications.
- Headquarters
- Sunnyvale, CA, USA
- Founded
- 2022
- Website
- Official site
